Aperçu /Produits/Juicer à presse hydraulique/Fruits spiral screw press squeezing juicer machine for orange fruit

Fruits spiral screw press squeezing juicer machine for orange fruit

1 Set
MOQ
$1,280.00(1 - 4 Sets) $1,250.00(>=5 Sets)
Prix
Fruits spiral screw press squeezing juicer machine for orange fruit
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Processing: Juice Extractor
Applicable Industries: Manufacturing Plant, Food & Beverage Factory, Farms, Retail
Showroom Location: None
Condition: New
Processing Types: Vegetable Fruit
Power: 1.5-2.2kw
Voltage: 380V
Weight: 110 KG
Dimension(L*W*H): base on capacity
Warranty: 1 Year
Marketing Type: Hot Product 2019
Machinery Test Report: Provided
Warranty of core components: 1 Year
Core Components: Engine
Key Selling Points: Automatic
Video outgoing-inspection: Provided
Function: squeeze
Name: juice machine
Capacity: customized
Material: Stainless Steel
Application: fruits
After Warranty Service: Online support
Informations de base
Conditions de paiement et expédition
Packaging Details: 1. by independent containers or by bulk carriers PVC film, 2. or wooden case, or steel frame.
Supply Ability: 20 Set/Sets per Month
Description de produit

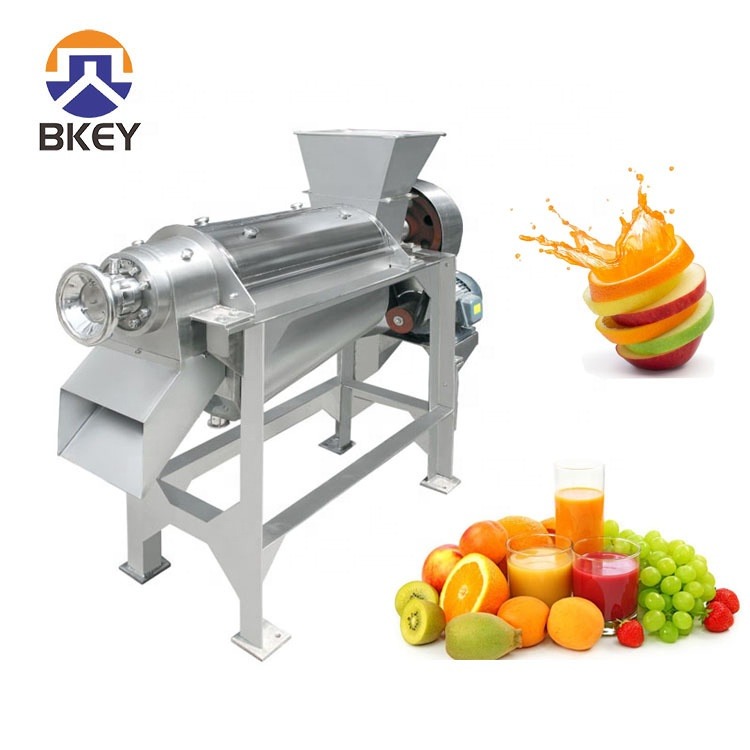

 Spiral Screw Press Squeezing Juicer Machine for Orange Fruit

The Juice Extractor Machine is suitable for juicing tomato, pineapple, apple, orange and other fruits and vegetables. It is composed of the front support, feed hopper, spiral, filter, juice holder, rear support, outlet groove and other components,

the left end of the spiral shaft is supported in the rolling bearing seat, the right end is supported in the hand wheel bearing seat. The motor works through a pair of three pulley drive helices. The working principle is that the crushed pulp, juice, and skin enter the screw juicer through the feed hopper. The bottom diameter in the direction of the slag outlet gradually increases and the screw pitch gradually decreases. When the material is screwed, the volume of the spiral cavity Shrink, forming a squeeze of the material.

 Features:

1. Procedures such as juicing and residue discharging of berries and vegetables are completed automatically.

2. Parts that contact materials are made of high quality stainless steel.

3. Spiral propelling and extruding.

4. High efficiency in extracting.

Capacity 0.2-T0.5T 1T-1.5T 1.5T-3T 3T-5T 6T-10T
Power 3kw 5.5kw 7.5kw 11kw 18.5KW
Diameter of Screw 180mm 260mm 350mm 420mm 500mm
Speed 12r/min 12r/min 12r/min 12r/min 12r/min
Adjustment Method Spring (adjustment)
Hydraulic (adjustment)

Mesh size
1mm (adjustable)

Voltage 380V/220V
Weight 550kg 900kg 1300kg 2600kg 3050kg
Dimension 170*50*80cm 220*60*90cm 350*70*100cm 358*100*147cm 374*120*165cm



NOTE: The capacity of our juice Extractor are customizable. If you have any problems about our products, please feel free to contact us!
