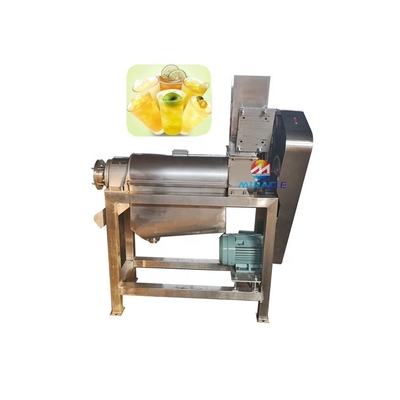

Industrial Juice Production Machinery Fruit Juice Processing Plant Restaurant Orange Juicer Machine Maker

The main component of orange juicer machine maker is the single screw. Along the direction of the slagging outlet, the bottom diameter gradually increases and the pitch decreases. When the material is pushed by the screw, the screw cavity volume decreases, resulting in the crushing of the raw material.

This orange juicer machine maker is widely used for extracting juice from watermelon, grape, strawberry, pear, apple, lemon, orange, tomato, radish, ginger and other fruit and vegetable.

Features of Industrial orange juice production machinery orange juicer machine maker

1.The juice and dregs separate automatically;
2.The orange juicer machine maker can be combined on the production line and also can be used by single machine;
3.High efficiency, low noise, no pollution.

When the orange juicer machine maker begins to work, the motor drives the spindle of crushing part to rotate through a pair of pulleys. The raw material enter into the crushing system from the feed inlet. There are some fly cutters on the rotor, and the fly cutter rotates about its own axis in the gap of the fixed base blade. Thus the raw material is cut by the high speed rotating fly-cutter, then these fruits and vegetables are crushed into 3~10mm. Because of the centrifugal force, the crushed material directly enters the juice pressing system.

Screw is the main part of the pressing system. The raw material is compressed by the screw shaft, the juice flows into the juice container through the screen mesh hole, while the slag is discharged through the circular gap formed by the screw and the conical part of pressure regulator. When the raw material is pushed by the screw, the volume of helical cavity is reduced continuously, thus the raw material is extracted.

1. Our orange juicer machine maker will be coated with film firstly, and then packed with free-fumigation wooden case.
2. We will deliver our equipment after the deposit. And we will provide the complete documents that custom clearance required. Such as sales contract, commercial invoice, packing list, certification of origin if require.

Henan Miracle Industry Co., Ltd was founded in 2007 mainly for our international business based on our factory for over 15 years experience in this industry.
We specialize in researching and manufacturing fruits and vegetables machinery, such as coconut processing machinery, dates processing machinery, garlic and onion processing machinery, fruits and vegetable washing and drying processing line, etc. There is different semi and fully auto production line to match with customer demands. Top design R&D team, professional production team, strict QC department, and first class sales and after sales services team. With the supporting of us, surely we will help you to do the leader in your industry.
With more than 10 years know-how in fruits and vegetable process industry, we never cease pursuing the better technology, design and craft. To produce the good quality egg machine is our mission; To serve the customers with various requirements is our duty. To achieve the win-win relationship is our target.

1: How can I get the orange juicer machine maker?
---Once you confirmed the order, we will send you proforma invoice for payment then start prepare the machine. We can delivery the machines to the port in your country and handle the exporting issue. After the machines arrive you, we will provide complete clearance documents to assist your clearance in custom.

2: How do I know if this orange juice squeezing machine suits me?
---Please contact us to provide your detailed requirements and your production situation, will give you best recommendation to your demand.

3: Can you provide engineer overseas service?
---YES we can offer this service, if you purchase production line from us, we will send engineer go to your countries for installation and training.

4: Can you manufacture orange juicer machine maker and production line as I want?
---YES, If you provide drawings and specific technical data, we can customize the machines according to your demand.

5: How about the after-sale service?
----The warranty is for one year, but we provide life-time technical support, any problem happened in your future using, take photos and videos to show us the problem, will reply in 24 hours and solve your problems as soon as possible.
